Evolve Energy Hub
Installed in over 130 real systems

Pytes Pi LV1 Batteries

Stackable 5.12 kWh LFP modules and BCU base units — sold individually to homeowners, installers and electricians, supply only, plus GST. Deye hybrid compatible and set up the way we've run them across 130+ systems. Deye inverters are further down the page, and VFD drives (solar optional) have their own page.

Get a quoteSee battery pricing

Pytes Batteries

Stackable 5.12 kWh LFP (LiFePO4) modules and the BCU base they sit on — build any stack size from 5.12 kWh up. Compatible with Deye hybrid inverters, suitable for residential and off-grid, and installed in over 130 real systems. Bulk pricing available for trade.

Check BMU quantities, the BCU base, inverter compatibility and installation requirements before ordering.

Read the Pytes Pi LV1 buying guide
Twin Pytes Pi LV1 battery stacks with a wall-mounted Deye hybrid inverter in a residential garage

130+ systems installed

Why the Pi LV1 is the better buy

The Pi LV1 is a stackable LFP battery built for the Australian market: cheap per kWh at wholesale, genuinely simple to install, and backed by the same 10-year warranty the premium brands offer. It is the battery we chose for our own installs, and after 130+ systems it is still the one we recommend.

Wholesale pricing, direct

We buy in volume and sell supply-only, so you pay close to trade on every module and stack. No installer margin baked into the battery, no retail markup for a brand name.

Solid 10-year warranty

10-year manufacturer warranty with 6,000-cycle LFP cells and 70% capacity retention — the same warranty term as Tesla, Sungrow and BYD, at a fraction of the price per kWh.

Proven on 130+ systems

We have personally fitted and commissioned over 130 Pi LV1 systems around Australia. We know the comms settings, the firmware quirks and how they behave in year three.

Simple: 15-minute install

Plug-and-play quick connectors, no hand-wiring, integrated DC breaker and fuse. Stack the modules, click them together, set the inverter comms and you are commissioning.

Scale as you go

5.12 kWh per module, 10.24 kWh to 30.72 kWh per stack, and up to 8 stacks (245.76 kWh) for bigger sites. Start small now and add modules later without replacing anything.

Not locked to one brand

48 V low-voltage architecture that talks to Deye and other mainstream hybrids. Sungrow batteries only work with Sungrow, Fox only with Fox — Pi LV1 gives you a choice.

The truth about battery cells in Australia

Almost every lithium home battery sold in Australia today — premium brand or not — uses LFP cells from one of the same handful of manufacturers: CATL, BYD, EVE, REPT and Gotion. The cells inside a Pi LV1 come off the same production lines as the cells inside the big-name batteries. Nobody in this market is making their own cells.

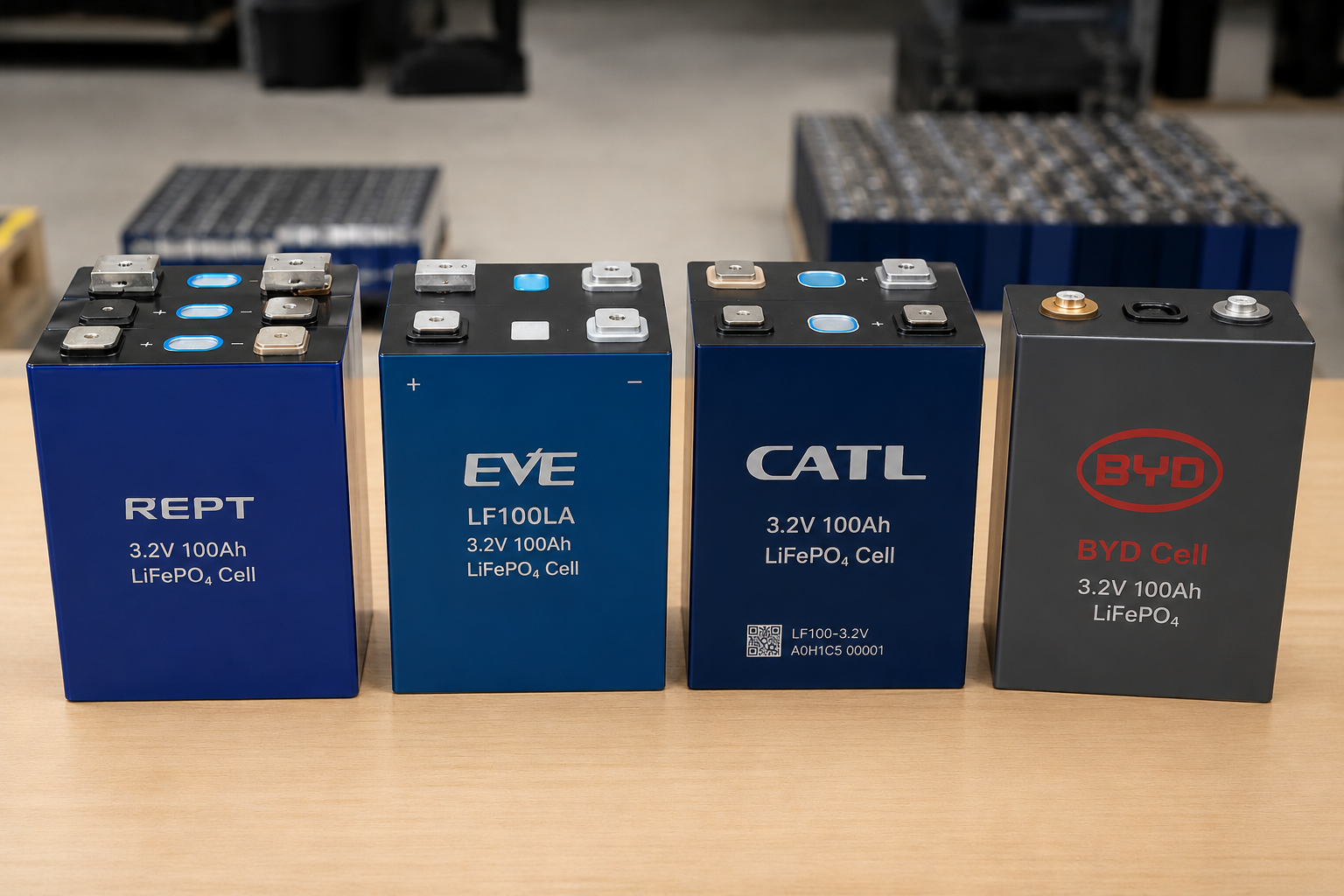

REPT, EVE, CATL and BYD 3.2V 100Ah LiFePO4 prismatic cells side by side
The same handful of LFP prismatic cells — REPT, EVE, CATL and BYD — sit inside nearly every lithium home battery sold in Australia.

Same cells, different badge

CATL, BYD, EVE and REPT supply the vast majority of LFP prismatic cells used in Australian home batteries. Paying a premium does not buy you a better cell.

The real difference is BMS + build

What actually separates brands is BMS software (balancing, comms, protection logic) and pack build quality — busbars, terminals, enclosure and thermal design.

Cheap to fix out of warranty

If a Pi LV1 BMS board ever fails outside the warranty period, it is an inexpensive, replaceable part — not a whole-battery write-off like sealed all-in-one units.

So the question is not "whose cells are better" — it is whether the pack is well built, the BMS talks properly to your inverter, and whether someone who actually knows the equipment picks up the phone when you need them. That is where we come in.

I'm the North Queensland warranty technician

Warranty handled directly by me — not a third party, not the installing electrician.

I am the appointed warranty technician for North QLD, so if something goes wrong with a Pytes system you bought from me, you call me. No call centre, no being bounced between the retailer, the installer and the manufacturer. I diagnose it, I raise it, and I see it through.

One phone call

Buy the system through me and I'm the person on the phone — design, commissioning, comms settings or faults.

North QLD warranty tech

Appointed warranty technician for the region. Claims go through me directly, not a third-party service agent.

I know the equipment

130+ Pytes Pi LV1 systems personally installed and commissioned alongside Deye hybrids. Nothing about this gear is new to me.

Talk to the technician

Pi LV1 datasheet

Manufacturer specifications, taken straight from the Pytes Pi LV1 user manual (v1.7, Apr 2025).

Download full manual (PDF)

System parameters

System model
Pytes Pi LV1 (BCU controller + BMU modules)
Cell chemistry
LFP (lithium iron phosphate)
Modules per tower
1 – 6 BMUs
Nominal voltage
51.2 V
Voltage range
47.5 – 56.8 V
Module capacity
5.12 kWh — 51.2 V, 100 Ah
Round-trip efficiency
≥ 95%
Cycle life
≥ 6,000 cycles (25 °C, 0.5C, 90% DOD)
Calendar life
≥ 10 years
Protection level
IP55 — indoor or outdoor
External comms
CAN, RS485, Wi-Fi, dry contact
Internal comms
RS232
Operating temp.
Charge 0 – 45 °C · Discharge −10 – 50 °C
Storage temp.
−20 – 50 °C (up to 1 month), 0 – 30 °C (3–12 months)
Certificates
UN38.3, IEC62619, CE, UL1973, UL9540, UL9540A

Capacity, size & weight by module count

BMUsEnergyRec. powerHeightWeight
15.12 kWh2.56 kW540 mm71.7 kg
210.24 kWh5.12 kW800 mm125.0 kg
315.36 kWh7.68 kW1,060 mm178.3 kg
420.48 kWh10.24 kW1,320 mm231.6 kg
525.6 kWh10.24 kW1,580 mm284.9 kg
630.72 kWh10.24 kW1,840 mm338.2 kg

All stacks are 681 mm wide × 242 mm deep. Up to 4 towers can be paralleled.

BMS protection & monitoring

  • Charge / discharge end cut-off
  • Cell balancing
  • Charge over-voltage protection
  • Intelligent charge algorithm
  • Discharge under-voltage protection
  • Charge / discharge current limiting
  • Over-current protection
  • Capacity retention calculation
  • High / low temperature warning & protection
  • Administrator monitoring
  • Short-circuit protection
  • Event log recording
  • Power cable reverse-polarity protection

Source: Pytes Pi LV1 user manual v1.7 (15 Apr 2025), Table 1-1 Specifications.

Key specifications

Chemistry
LFP (lithium iron phosphate)
Module capacity
5.12 kWh — 51.2 V, 100 Ah
Stack range
10.24 – 30.72 kWh, up to 245.76 kWh total
Output
Up to 14.08 kW continuous, 25.6 kW surge
Enclosure
IP55 — indoor or outdoor rated
Safety
UL9540A large-scale tested, DC breaker + fuse per module
Approvals
CEC Battery Assurance Program listed (rebate eligible)
Warranty
10 years, 6,000 cycles

How it compares to the big-name batteries

Every battery below uses LFP cells and carries a 10-year warranty. The difference is what you pay per kWh, and whether you are locked into one inverter brand for the next decade.

BatteryCapacityPowerWarrantyInverter choiceInstall
Pytes Pi LV15.12 kWh modules, 10.24 – 30.72 kWhUp to 14.08 kW cont. / 25.6 kW surge10 yr · 6,000 cyclesOpen 48 V — Deye and other LV hybridsPlug-and-play, ~15 min stack
Tesla Powerwall 313.5 kWh fixed11.5 kW cont. / 22 kW peak10 yrIntegrated — Tesla ecosystem onlySingle large AC unit, one-size-fits-all
Sungrow SBR HV9.6 – 25.6 kWh (3.2 kWh modules)6.4 – 12.8 kW10 yrSungrow SH hybrids onlyHigh-voltage stack, brand-locked
BYD Battery-Box HVM11.0 – 22.1 kWh~10.2 kW10 yrMultiple HV hybridsHV modules, hand-wired BMU

Competitor figures are manufacturer-published specifications for the current Australian models and are provided for general comparison only.

Warranty

Every Pi LV1 module and base unit carries the full Pytes manufacturer warranty, backed by Australian support. Warranty is registered against the serial numbers on your invoice.

10 years

Manufacturer warranty

Modules and base unit, from date of purchase.

6,000

Cycle life

Rated cycles at 90% depth of discharge.

70%

Capacity retained

Guaranteed remaining capacity at end of term.

AU

Local support

Australian warranty support and replacement stock.

  • Covers the BMU battery modules and the BCU base/control unit.
  • Transferable to a new owner if the property is sold.
  • Valid when installed per the Pi LV1 manual by a licensed electrician (ELV/DIY excepted).
  • We keep your serial numbers on file to make any claim straightforward.

Want wholesale pricing on a Pi LV1 stack?

Tell us your usage or system size and we will price the modules and matched Deye hybrid — supply only, shipped Australia-wide.

Get pricingDatasheets

Pricing

Supply only, plus GST. Buy the parts and build any stack size you need. One BCU base unit carries 1–6 BMU modules.

Pytes Pi LV1 Battery Module — 5.12 kWh
Pytes Batteries

Pytes Pi LV1 Battery Module — 5.12 kWh

Pi LV1 BMU · 51.2 V 100 Ah LFP

Pi LV1 BMU: 51.2 V, 100 Ah LFP, 5.12 kWh nominal. Requires BCU base; up to six BMU modules per tower. Supply only. $1,250 plus GST.

  • 5.12 kWh nominal, 51.2 V / 100 Ah LFP
  • 10-year warranty, 6,000 cycle life
  • 681 × 242 × 260 mm, 71.7 kg per module
  • Stackable up to 6 modules per Pi LV1 tower
Pytes Pi LV1 user manual
$1,250.00
plus GST per module
Get a Quote
Pytes Pi LV1 Base Unit (BCU)
Pytes Batteries

Pytes Pi LV1 Base Unit (BCU)

Pi LV1 BCU + Base

Control and connection base for one to six BMU modules. Not an additional battery. Supply only. $650 plus GST.

  • Required control unit for all Pi LV1 stacks
  • CAN, RS485, Wi-Fi and dry-contact comms
  • Deye-tested battery comms settings supplied
  • Floor base, earthing and power cables included
Pytes Pi LV1 user manual
$650.00
plus GST per base
Get a Quote

Bulk pricing available

Installers, electricians and solar companies: sharper per-unit pricing on multi-stack and pallet orders, with repeat-order rates for regular buyers. Tell us your monthly volume and we'll quote a trade price.

Request bulk pricing

Deye Inverters

Single and three-phase hybrids we know inside out.

Choose from 10 kW single phase, 10 kW three phase and 12 kW three phase. Confirm your property supply, backup loads and battery requirements with your installer.

Compare Deye inverter models in our buying guide
Deye 10 kW Single Phase Hybrid Inverter
Deye Inverters

Deye 10 kW Single Phase Hybrid Inverter

SUN-10K-SG02LP1-AU-AM3

SUN-10K-SG02LP1-AU-AM3 single-phase hybrid. Confirm supply phase, battery communication and backup design with your installer. Supply only. $2,600 plus GST.

  • 9,999 W rated AC output, 43.5 A
  • 15 kW max PV input, 3 MPPT (26+26+26 A)
  • 40–60 V battery, 220 A charge / discharge
  • IP65, colour touch LCD, up to 16 units parallel
Deye SG02LP1 single-phase datasheetDeye SG02LP1 single-phase manual
$2,600.00
plus GST, supply only
Get a Quote

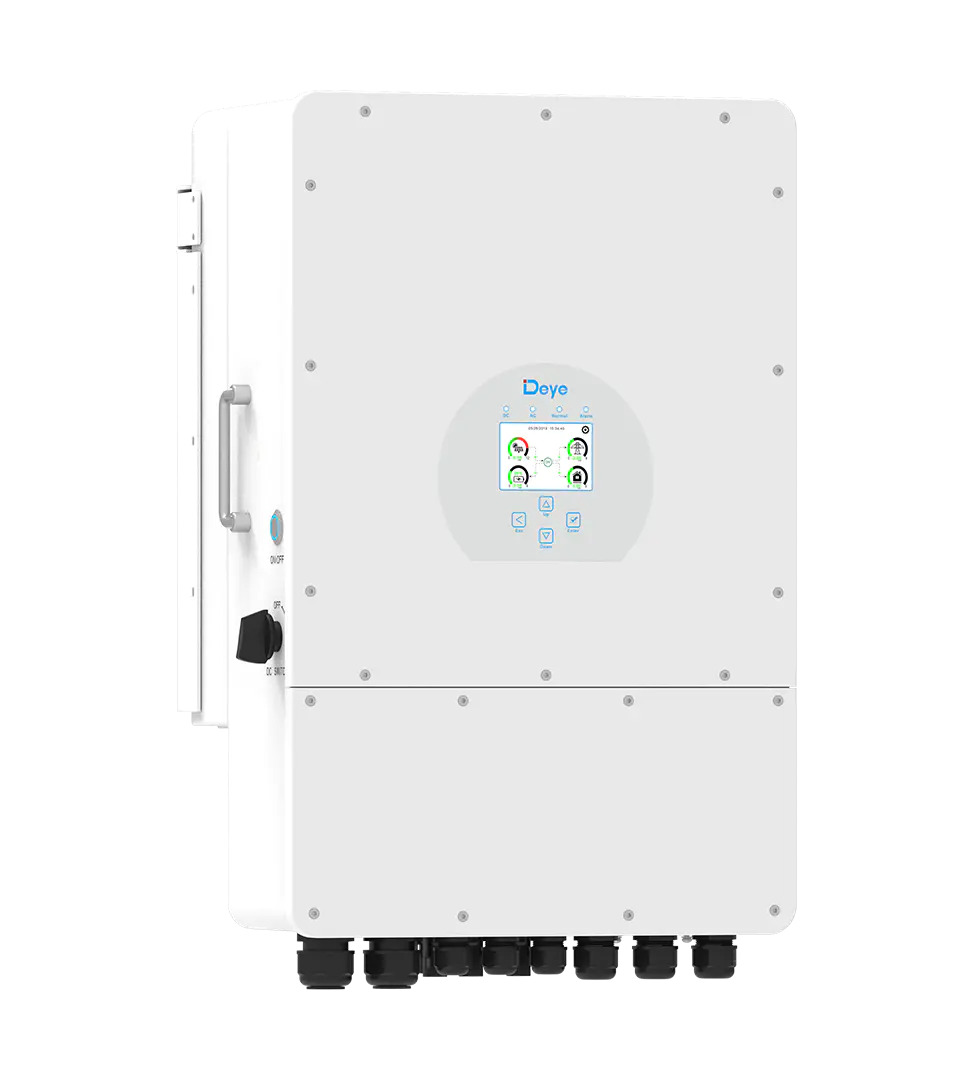

Deye 12 kW Three Phase Hybrid Inverter
Deye Inverters

Deye 12 kW Three Phase Hybrid Inverter

SUN-12K-SG04LP3-AU

SUN-12K-SG04LP3-AU three-phase hybrid. Three phase only. Confirm supply phase, battery communication and backup design with your installer. Supply only. $3,300 plus GST.

  • 12,000 W rated AC output, 17.4 A per phase
  • 18 kW max PV input, 800 V max, 2 MPPT
  • 48 V battery, 240 A charge / discharge
  • 97.6% max efficiency, up to 16 units parallel
Deye SG04LP3 three-phase datasheetDeye SG04LP3 three-phase manual
$3,300.00
plus GST, supply only
Get a Quote

Want it fully installed?

We're supply only — we sell batteries, inverters and VFD drives direct to you, including trade supply to installers and electricians. For homeowners seeking a designed, installed and grid-connected system, Shorecan Electrical and Solar handles the licensed work.

Visit Shorecan

Datasheets & manuals

Official manufacturer documentation for the products we supply — the same documents we work from on every system.

Pytes Pi LV1 user manual (PDF)Deye SG02LP1 single-phase datasheet (PDF)Deye SG02LP1 single-phase manual (PDF)Deye SG04LP3 three-phase datasheet (PDF)Deye SG04LP3 three-phase manual (PDF)

Need a custom configuration?

Larger stacks, three-phase Deye setups, pump sizing and custom cable lengths are all available — just ask.
